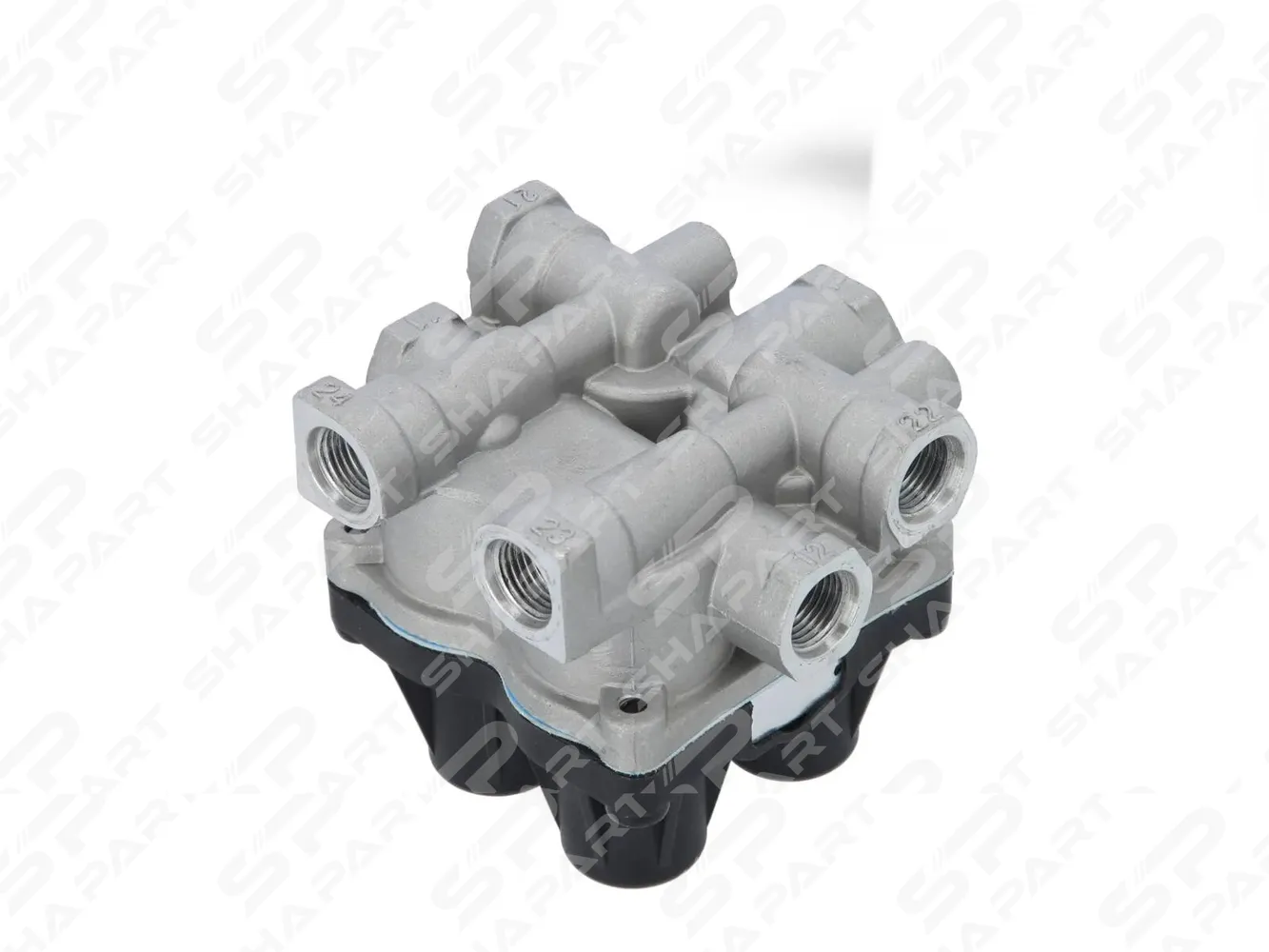

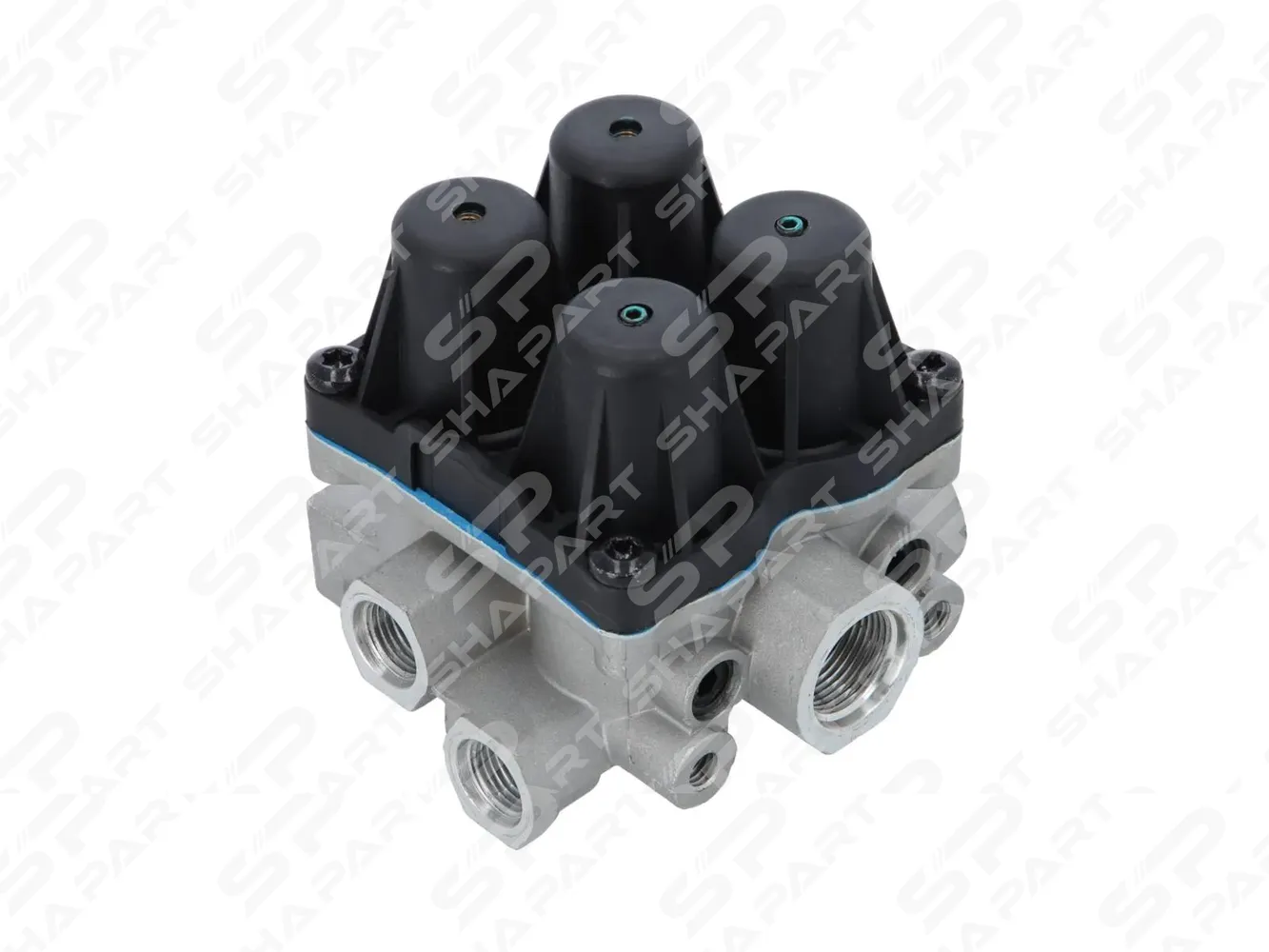

2.44039 4-circuit-protection valve, M16 x 1,5, M22 x 1,5, max. 13 bar, Po21: 6.3 bar, Po22: 6.3 bar, Po23: 5.8 bar, Po24: 5.8 bar, Pc21: 4.8 bar, Pc22: 4.8 bar, Pc23: 3.8 bar, Pc24: 3.8 bar
Stock Code:
2.44039
replaces Wabco: 934 714 740 0
| vida_boyutu_1 | M16 x 1,5 |
|---|---|
| vida_boyutu_2 | M22 x 1,5 |
| Operating pressure to [bar] | 13.00 bar |
| Opening pressure (21) [bar] | 6.30 bar |
| Opening pressure (22) [bar] | 6.30 bar |
| Opening pressure (23) [bar] | 5.80 bar |
| Opening pressure (24) [bar] | 5.80 bar |
| Closing pressure (21) [bar] | 4.80 bar |
| Closing pressure (22) [bar] | 4.80 bar |
| Closing pressure (23) [bar] | 3.80 bar |
| Closing pressure (24) [bar] | 3.80 bar |
| Weight | 740.00 g |
| Warranty Period | 2 |
| Brand | Model |
|---|---|
| Volvo | FH 2005-2012 2005 - 2012 - FH FH12 2001-2005 2001 - 2005 - FH FH16 2003-2006 2003 - 2006 - FH FM 2005-2012 2005 - 2012 - FM FM12 2001-2005 2001 - 2005 - FM FM9 2001-2005 2001 - 2005 - FM FMX 2010-2012 2010 - 2012 - FM |
Vehicle makes and models, original product numbers, and reference numbers are provided for informational purposes only.
| Brand | Reference No |
|---|---|
| Wabco | 934 714 740 0 |
| Volvo | 20382309 |
| Volvo | 20452151 |
| Volvo | 20716313 |
| Volvo | 20755195 |
| Volvo | 21225479 |
| ZG | ZG.50036-0008 |
Vehicle makes and models, original product numbers, and reference numbers are provided for informational purposes only.
